Nutrient interactions explained
Understanding nutrient antagonism, synergy and their impact on crop performance.
Nutrients do not function independently. Their availability, uptake and utilization are influenced by the concentrations of other elements, root-zone conditions and plant physiology.
An excess of one nutrient can restrict another, even when soil analysis indicates sufficient availability. Conversely, certain nutrients support complementary physiological processes that improve growth, tissue development and nutrient-use efficiency.
Understanding these interactions helps agronomists identify the reasons behind nutrient imbalances and make more precise fertilization decisions.
Mulder’s chart provides a useful starting point. SoilBeat helps take the next step by connecting these relationships with soil analyses, plant sap measurements and field observations.
Understand the interactions. Verify them in your crop.
Start using SoilBeat
Choose a relationship. Choose your depth.
Start with the plain-language story, then switch to the physiology. Every card links to the nutrients’ own SoilBeat articles.
What is Mulder’s chart?
A map of possibilities. Your crop provides the evidence.
Mulder’s chart summarises potential nutrient interactions. The atlas below also explores nitrogen forms, salinity and complementary plant functions.
↗ ANTAGONISM
A high supply of one nutrient can restrict another.
↔ SYNERGY & COMPLEMENTARY ROLES
Different nutrients support connected processes.
Concentration, species, pH, water, roots and growth stage change the response. An arrow is a reason to investigate—not a fertilizer prescription.

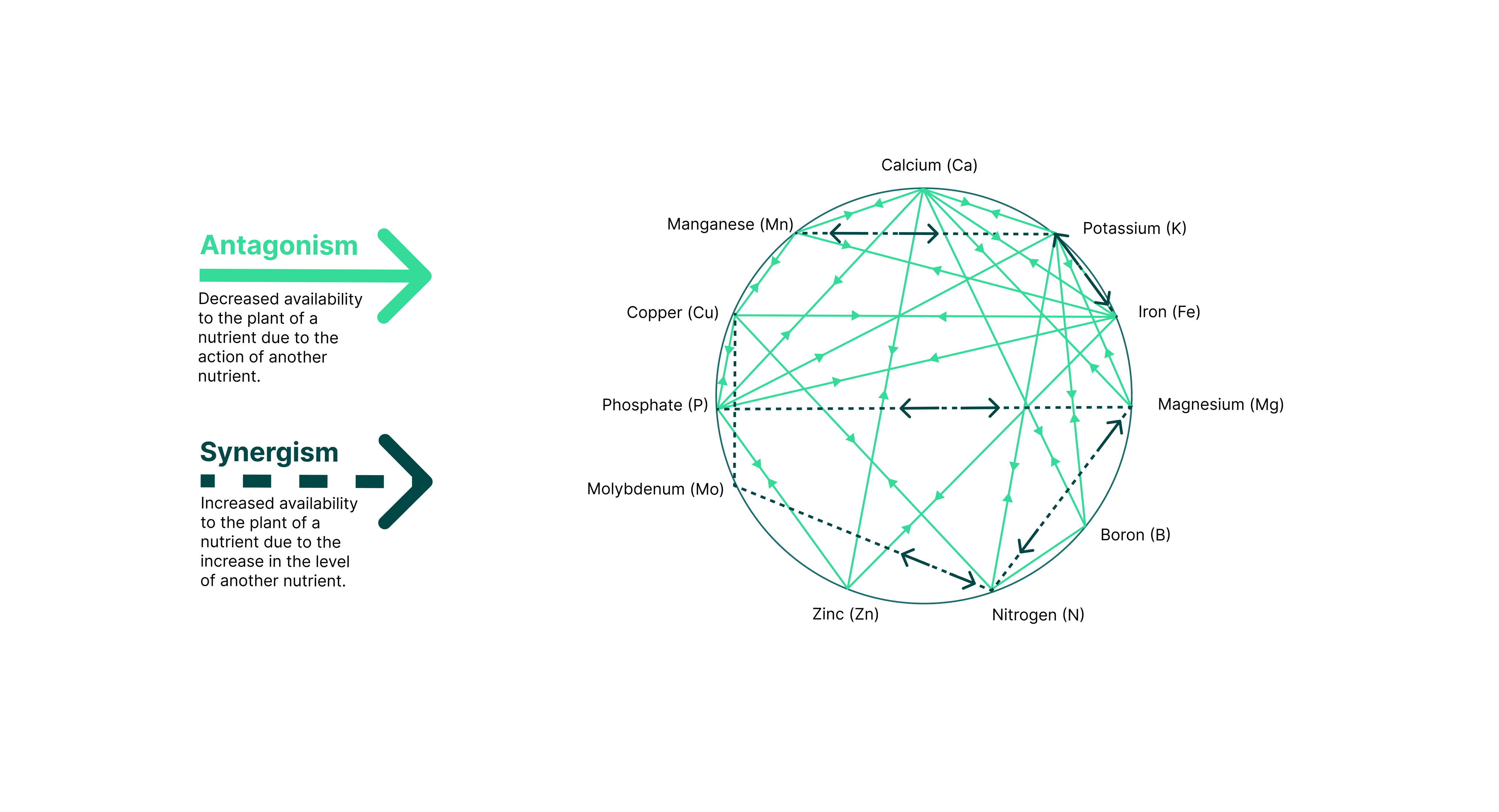

What is Mulder’s chart?
Mulder’s chart is a visual representation of interactions between plant nutrients. It illustrates how the availability or uptake of one nutrient may be influenced by another.
Chart legend: Mint solid arrows = antagonism. Dark teal dashed arrows = synergy. These relationships depend on nutrient concentrations, crop and growing conditions; the chart does not diagnose a deficiency.
The chart distinguishes two principal relationships.
Antagonistic interactions occur when an increase in one nutrient reduces the availability, uptake or utilization of another. Excess potassium, for example, can restrict magnesium and calcium uptake under certain conditions.
Synergistic interactions occur when nutrients have a positive combined effect on uptake, metabolism or plant growth. These interactions may involve nutrient acquisition, enzyme activity or complementary physiological functions.
Mulder’s chart is a conceptual framework, not a diagnostic instrument. The magnitude of each interaction depends on nutrient concentration, crop species, soil pH, root activity, moisture, temperature and growth stage.
A relationship shown on the chart does not automatically mean that the interaction is limiting crop performance.
The practical principle: Nutrient balance can be as important as the absolute concentration of individual elements.
Why does too much potassium cause a calcium deficiency?
Excessive potassium availability can reduce calcium uptake through competition between positively charged nutrients in the root zone and at plant transport systems.
Potassium (K⁺), calcium (Ca²⁺) and magnesium (Mg²⁺) interact through cation exchange, membrane transport and the regulation of ionic balance. When potassium supply is disproportionately high, calcium and magnesium uptake may decline.
Calcium transport is particularly sensitive to plant water relations. Once absorbed, calcium moves predominantly through the xylem with the transpiration stream. Its redistribution through the phloem is limited.
Consequently, rapidly developing tissues may experience insufficient calcium supply even when older leaves contain adequate concentrations.
This can contribute to disorders such as blossom-end rot in tomatoes and peppers, tip burn in leafy vegetables and reduced tissue quality in susceptible crops.
What should agronomists investigate?
Review potassium, calcium and magnesium concentrations together, rather than interpreting potassium independently. Compare young and mature tissue, check soil exchangeable cations, and investigate irrigation, root activity and transpiration.
High potassium is a potential cause of restricted calcium supply, but it is not proof of calcium deficiency.
01 / CATION BALANCE
The cation balancing act.
When one positively charged nutrient becomes dominant, investigate what happens to the others.
02 / STRUCTURE & AVAILABILITY
Building strong new growth.
Complementary roles in tissue development—and the root-zone chemistry that changes nutrient supply.
Does ammonium block calcium uptake?
High ammonium availability can suppress calcium uptake, particularly when ammonium represents a large proportion of the nitrogen supply.
Ammonium (NH₄⁺) is a positively charged nitrogen form. Its uptake affects rhizosphere pH, ionic balance and the acquisition of other cations, including calcium, magnesium and potassium.
Where ammonium supply exceeds the plant’s capacity to assimilate it efficiently, nutrient imbalances and metabolic stress may develop.
The effect depends on crop species, nitrogen concentration, the nitrate-to-ammonium ratio, root-zone pH and environmental conditions.
What to look for in plant sap analysis
An elevated ammonium concentration alongside declining calcium or magnesium may indicate an imbalance worth investigating.
Compare NH₄-N with NO₃-N, calcium, magnesium and potassium. Then evaluate the nitrogen source, fertilizer application history, root-zone pH and oxygen availability.
The objective is not to eliminate ammonium, but to maintain an appropriate nitrogen balance for the crop and growing conditions.
How do calcium, boron and silicon work together?
Calcium, boron and silicon contribute to plant structure and stress tolerance through different but complementary physiological mechanisms.
Calcium (Ca) is essential for cell-wall stability, membrane integrity and cellular signaling. Calcium cross-links pectic substances in the cell wall and is particularly important in actively developing tissues.
Boron (B) contributes to cell-wall architecture by supporting the cross-linking of rhamnogalacturonan II, a structural component of primary cell walls. Adequate boron is important for growing points, reproductive development and tissue formation.
Silicon (Si) is a beneficial element for many crops, with especially strong responses in silicon-accumulating species. Silicon deposition can reinforce certain tissues and contribute to tolerance against selected abiotic and biotic stresses.
These elements are not interchangeable. Silicon does not provide a universal transport pathway for calcium, and increasing boron does not automatically improve calcium uptake.
Their combined importance lies in supporting structural development through different mechanisms.
What should agronomists monitor?
Evaluate calcium and boron status in developing tissues, together with crop growth rate, transpiration conditions and visible tissue disorders.
Where silicon management is relevant, consider the crop’s silicon accumulation capacity and evidence of response.
Balanced supply is more useful than assuming that additional quantities of all three elements will necessarily improve crop performance.
03 / NITROGEN METABOLISM
Turning nitrogen into growth.
Nitrogen uptake is only the beginning. Follow the relationships involved in transport, assimilation and protein production.
What does molybdenum have to do with nitrate?
Molybdenum is an essential cofactor of nitrate reductase, the enzyme responsible for the first reduction step in nitrate assimilation.
Plants absorb nitrate (NO₃⁻) from the root zone, but nitrate must be reduced before its nitrogen can be incorporated into amino acids and proteins.
Nitrate reductase converts nitrate into nitrite. Nitrite reductase then converts nitrite into ammonium, which is assimilated into organic nitrogen compounds.
Molybdenum is required for nitrate reductase activity. When molybdenum is deficient, nitrate reduction can become restricted, potentially resulting in nitrate accumulation and impaired nitrogen metabolism.
The process also depends on other factors, including iron, sulfur, photosynthetic energy supply and the activity of nitrogen-assimilation enzymes.
What to look for in plant sap analysis
Elevated NO₃-N alongside low molybdenum may justify investigating nitrate assimilation.
However, high nitrate alone does not establish molybdenum deficiency. High nitrogen supply, limited light, temperature stress and other nutritional limitations can produce similar patterns.
Before increasing nitrogen applications, review nitrate, ammonium, molybdenum, sulfur, iron and relevant environmental conditions.
The goal is not simply to increase nitrogen uptake, but to support its efficient conversion into plant biomass.
04 / MICRONUTRIENT BALANCE
Small nutrients. Big interactions.
Small concentrations, shared environmental drivers and interactions that need careful interpretation.
How does sodium affect calcium uptake?
Excess sodium can interfere with calcium acquisition and increase the physiological stress associated with saline or sodic growing conditions.
Sodium (Na⁺) affects nutrient balance through cation interactions, osmotic stress and changes in the root environment.
In sodic soils, excessive exchangeable sodium can destabilize soil aggregates, reduce infiltration and impair aeration. These physical effects can further restrict root function and calcium acquisition.
High sodium concentrations may also disturb potassium and calcium homeostasis within the plant.
The severity depends on crop salt tolerance, sodium concentration, electrical conductivity, calcium availability, irrigation water composition and soil properties.
What should agronomists investigate?
Compare sodium with calcium and potassium in soil, irrigation water and plant analyses.
Check electrical conductivity, exchangeable sodium status, water infiltration and drainage where relevant.
Calcium amendments may be appropriate for certain sodic soils, but additional calcium alone will not correct every sodium problem. The treatment must match the underlying soil chemistry and water-management conditions.
How do I see these interactions in my own data?
Mulder’s chart explains which nutrient relationships may matter. SoilBeat helps agronomists investigate whether those relationships are relevant in their own fields.
A single nutrient concentration rarely provides enough information to diagnose an interaction. Meaningful interpretation requires comparing several measurements and understanding their context.
Connect soil and plant measurements
Soil analysis describes aspects of nutrient availability and the conditions influencing nutrient supply.
Plant sap analysis provides an additional view of the crop’s current nutritional status. Comparing young and old leaves can offer useful information about nutrient distribution, particularly when interpreted in relation to nutrient mobility.
SoilBeat brings measurements and field information into a common analytical workflow.
Identify potential nutrient interactions
Consider a crop with elevated potassium and declining calcium in young leaves.
This pattern may be consistent with cation competition, but several alternative explanations remain possible, including restricted transpiration, poor root function or inconsistent water supply.
SoilBeat can help surface relevant relationships for further investigation rather than treating the observed pattern as proof of a particular cause.
Examples include:
Nutrient relationship
Pattern worth investigating
Potassium / Calcium / Magnesium
High K with low Ca or Mg
Ammonium / Calcium
High NH₄-N with declining Ca
Calcium / Boron
Low Ca or B in developing leaves
Molybdenum / Nitrate
High NO₃-N with low Mo
Sodium / Calcium
High Na alongside impaired Ca status
Phosphorus / Zinc
Elevated P with low Zn
Follow nutrient trends over time
Repeated measurements provide greater diagnostic value when sampling methods, crop stages and laboratory procedures are comparable.
SoilBeat helps visualize nutrient changes across sampling dates, compare measurements with relevant targets and place results alongside field activities.
This makes it possible to investigate whether a nutrient imbalance appeared after a fertilizer application, whether a correction was followed by improvement and whether the pattern persists through crop development.
Move from observation to a defensible recommendation
A possible interaction should lead to a verification process, not an automatic fertilizer recommendation.
First confirm the nutrient status. Then evaluate the root environment, crop conditions and recent management history. Correct the verified limiting factor and measure the response.
SoilBeat supports this process by connecting analytical results with agronomic context, expert-reviewed prescriptions and follow-up observations.
From isolated nutrient values to better-informed agronomic decisions.
Explore SoilBeat
How do I see these interactions in my own data?
The relationship is a hypothesis. Measurements and field context help you test it.
01
Connect
Bring soil, sap, water and leaf age together. Keep sampling methods and crop stages comparable.
02
Investigate
Check roots, irrigation, weather and recent applications before choosing a cause.
03
Verify
Correct the confirmed limitation, follow nutrient trends and measure the response.
Frequently asked questions
What is the difference between antagonistic and synergistic interactions?
Which interactions matter most for my crop?
Does adding potassium reduce calcium uptake?
Frequently asked questions
What is the difference between antagonistic and synergistic interactions?
Which interactions matter most for my crop?
Does adding potassium reduce calcium uptake?
Make nutrient interactions part of your agronomic decisions
Nutrient management involves more than correcting individual deficiencies.
Understanding how elements influence one another helps explain why crops sometimes respond poorly to fertilization, why nutrient imbalances persist and why a sufficient soil nutrient concentration does not always translate into adequate plant nutrition.
SoilBeat brings soil analyses, plant measurements, nutrient trends and field context together to support more informed decisions.
Understand the relationship. Identify the limitation. Verify the response.
Start free with SoilBeat
SoilBeat supports agronomic interpretation and decision-making. Nutrient interaction indicators should be verified against crop conditions and appropriate measurements before corrective applications are made.
